Filling machinery · compare the range
Choose liquid filling equipment around your product's viscosity, the amount per fill, container shape and required output. Compare the models below, then share those details for an application-based quotation.
Use these details to compare the range and prepare your enquiry. If a specification is not shown, ask us to confirm it for your application.
Compare before you enquire
Filter by production setup or search the specifications. Leave either field open if you are not sure yet.
Automatic
Four‑nozzle automatic piston filler for honey, sauce, cream and lotion. Choose the appropriate cylinder module for your fill size.
Automatic
Six‑nozzle automatic piston filler for viscous products like cream, pesto or béchamel. Select a cylinder module (5–100 to 1000–5000 ml) and run precise volumetric fills.
Automatic
High‑speed servo piston filler with following nozzles that track bottles on the move. Set volume directly on the touchscreen; electric‑eye detection and a feeding pump help maintain accuracy at speed.
Automatic
Servo‑controlled peristaltic filler with touch HMI. Dosing volume is set directly on the screen—no need to time the fill. Four peristaltic channels keep product inside disposable tubing for rapid changeovers.
Automatic
Equipped with gear pump, this liquid filling machine can work automatically. The machine can fill about 30 bottles/min (at 5L). Each filling nozzle of this machine can be controlled separately.
Automatic
Full‑automatic vacuum level filler for perfumes, eyewash and low‑viscosity liquids. Vacuum back‑suction controls the liquid level precisely and protects fragrance integrity.
Semi-automatic

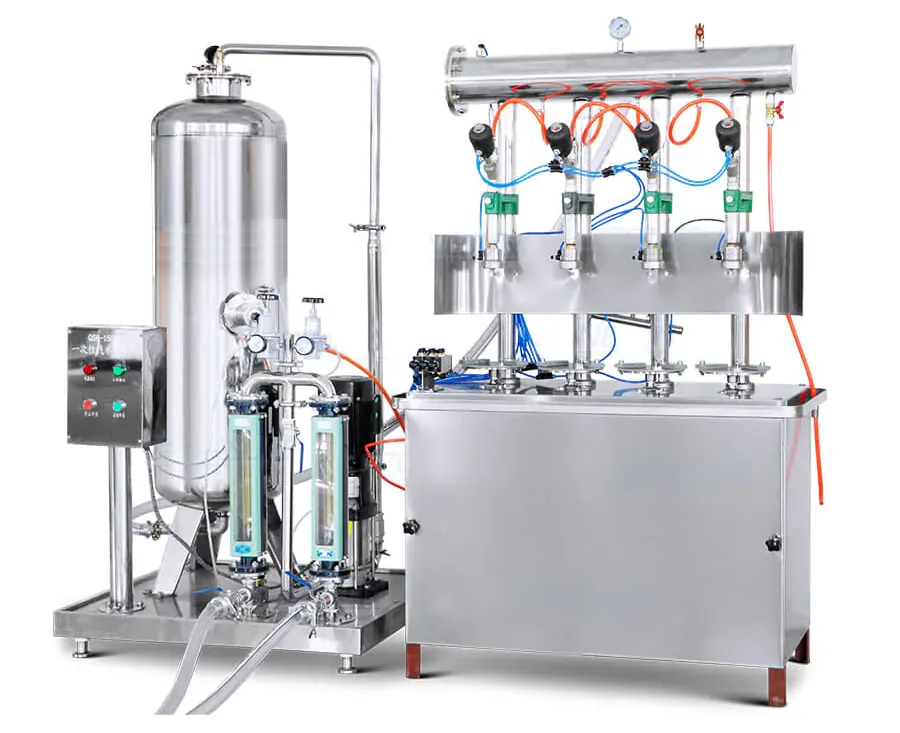

Compact 4‑head counter‑pressure can filler with mixing module. Designed for soda, sparkling drinks and RTD cocktails in 330–500 ml cans.
Automatic
Manufactured for Lancing, GD series constant pressure filler is an advanced level bottle-filling machine which is designed and developed to offer consistent and reliable operation.
Automatic
Automatic filling platform engineered for flammable solvents in zoned environments. Explosion‑protected electricals and pneumatic actuation reduce ignition risks and support compliance.
Automatic
Automatic gravity filler engineered for corrosive liquids like bleach, acids and fertilizers. Non‑metal wetted parts (PP/PTFE/PVC) protect product quality and machine life.
Semi-automatic
Weighing-based large-volume filler for 5–30 L containers. Diving nozzles handle foamy liquids cleanly while the gear pump keeps supply steady; the conveyor transfers filled buckets downstream.
Semi-automatic
Corrosion‑resistant PP construction and diving nozzles for bleach, disinfectants and other aggressive liquids. Built on a proven platform with configurable heads and PLC control.
Semi-automatic

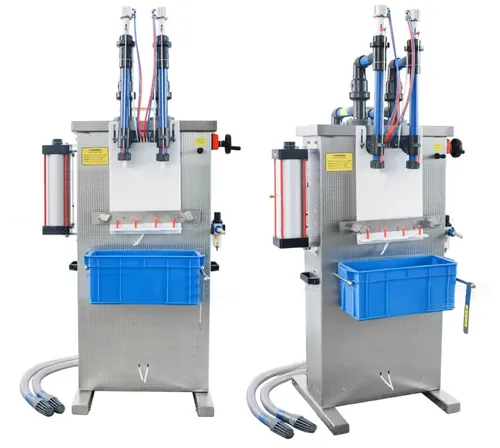

Fully pneumatic, double‑head filler engineered for corrosive liquids like toilet cleaner and acids. All wetted parts are plastic to resist HCl and similar chemicals.
Automatic
Tabletop 2–4 head piston filler for soaps, shampoos and viscous liquids. Accurate volumetric dosing with ≤±1% typical accuracy.
Semi-automatic
Single‑nozzle peristaltic filler with integrated scale for higher accuracy. Designed for inks, perfumes and essential oils where weight feedback improves consistency.
Automatic
Rotary premade pouch filler with twin piston‑pump heads. Opens, fills and seals Doypacks for creams, detergents and other liquids at 20–40 ppm.
Other formats
Compact vertical form‑fill‑seal for liquids and sauces. Piston pump dosing, 80 L stirred hopper and multiple seal styles deliver retail‑ready sachets.
Benchtop / manual
Explosion‑proof weigh‑fill station for flammable solvents like acetone, thinners and gasoline. Ex‑proof control box and spray‑proof discharge ensure safe, repeatable fills.
Automatic
Automatic 4‑head diaphragm‑pump filler for gels, shampoo and detergents. Large 40 L/min flow rate supports ≈30–45 bpm with four independently controlled nozzles.
Benchtop / manual

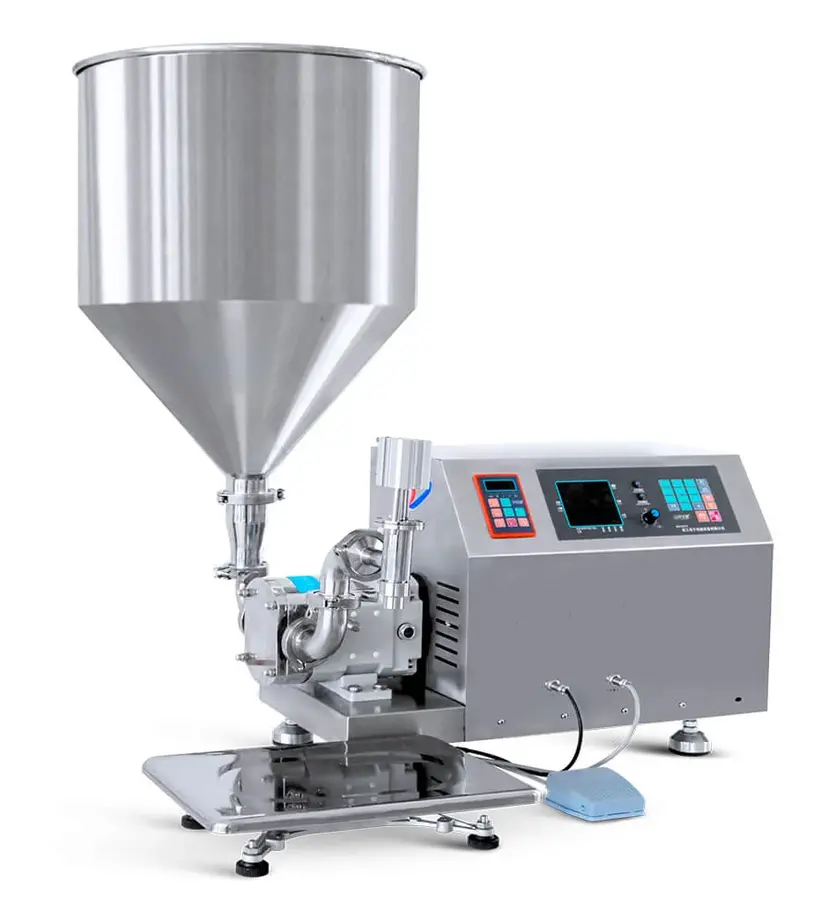

The Roto Lube pump filling machine has advantage of high accuracy when filling thick liquid or paste like jam,noodle pulp,meat stuffing,tomato paste etc.It is widely used in food,cosmetics,daily chemical industries.
Automatic

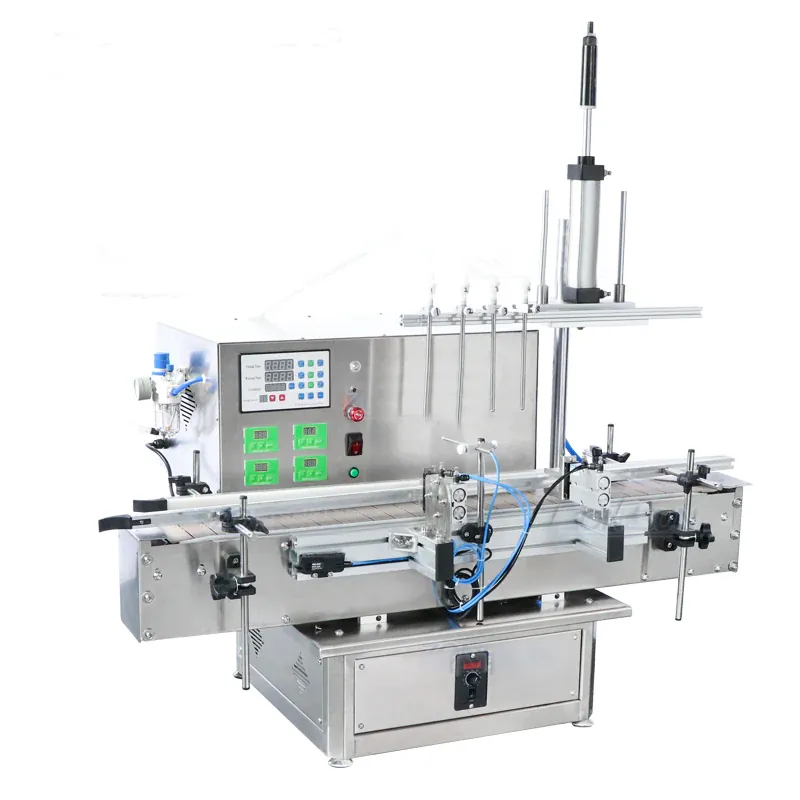

Desktop automatic peristaltic filler with 4 nozzles. Each head has an independent pump (≈60 W) delivering up to ≈4000 ml/min; ≈30–50 bpm depending on bottle and liquid.
Automatic

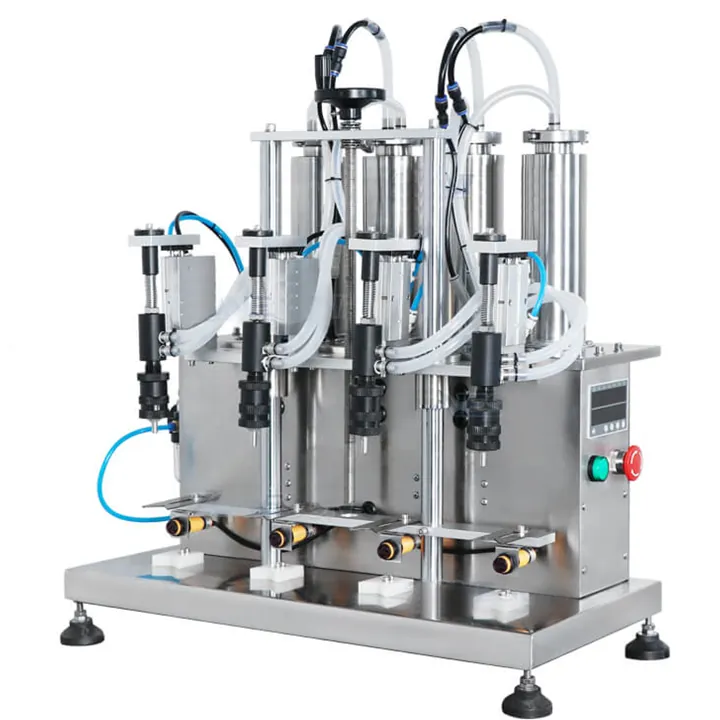

Overflow Vacuum Fillers are designed to fill to a level rather than to dispense a specific volume of liquid. Ideal for applications with inconsistent glass bottles where the level at the neck of the bottles must be the same in successive packs.
Semi-automatic
Pneumatic piston filler for liquids and pastes. Multiple cylinder ranges from 5–100 ml up to 1000–5000 ml; dual nozzles with anti‑drip deliver ≈10–50 bpm.
Semi-automatic
Bench‑friendly gear‑pump filler with built‑in weighing. High flow (up to 36 L/min) handles oils and thicker liquids. Set a target weight for simple, accurate fills.
| Machine | Output | Fill range | Heads | Guide price |
|---|---|---|---|---|
| Automatic Volumetric Filling Machine | See model specification | 5–100 to 1000–5000 ml | 4 | Quoted to specification |
| Automatic Paste Filling Machine | See model specification | 5–100 to 1000–5000 ml | 6 | Quoted to specification |
| Automatic Servo Filling Machine | ≈40–80 bottles/min (product‑dependent) | 5–100 / 10–300 / 50–500 / 100–1000 ml | Customisable multiple heads | Quoted to specification |
| Automatic Peristaltic Filling Machine | ≈10–20 BPM (100 ml water) | ≈10–500 ml | Model dependent | Quoted to specification |
| Gear Pump Filling Machines | See model specification | Product dependent | Model dependent | Quoted to specification |
| Automatic Vacuum Filling Machine | ≈20–40 bottles/min | Product dependent | 4 (customisable) | Quoted to specification |
| Semi Automatic Isobaric Filling Machine | ≈240–400 cans/hour | Not specified; confirm fill size | 4 | Quoted to specification |
| Isobaric Filling Machine | See model specification | Product dependent | Model dependent | Quoted to specification |
| ATEX Automatic Filling Machine | See model specification | Product dependent | 1–6 heads (per throughput) | Quoted to specification |
| Automatic Anti Corrosion Filling Machine | ≈200–2500 bottles/hour (by volume) | 100–3000 ml | 4 (customisable) | Quoted to specification |
| Semi Automatic Bucket Filling Machine | ≈100–120 bottles/hour (volume‑dependent) | 5–30 L | 2 × diving heads | Quoted to specification |
| Semi Automatic Bleach Filling Machine | ≈18 bottles/min @ 500 ml | Not specified; confirm fill size | 6 (customisable) | Quoted to specification |
| Semi Automatic Corrosion Proof Filling Machine | ≈10–30 bottles/min | Product dependent | 2 | Quoted to specification |
| Compact Automatic Volumetric Filling Machine | ≈10–30 bottles/min | 5–100 / 10–300 / 50–500 / 100–1000 / 500–3000 / 1000–5000 ml | 2 (customisable to 4) | Quoted to specification |
| Semi Automatic Peristaltic Weigh Filling Machine | See model specification | Not specified; confirm fill size | 1 | Quoted to specification |
| Pre‑made Pouch Filling Machine | ≈20–40 pouches/min | Product dependent | Model dependent | Quoted to specification |
| Liquid VFFS Sachet Machine | See model specification | Product dependent | Model dependent | Quoted to specification |
| ATEX Weigh Filling Machine | ≈3–6 bottles/min (volume‑dependent) | 10–30 L | Model dependent | Quoted to specification |
| Automatic Diaphragm Pump Filling Machine | ≈30–45 bottles/min | Product dependent | 4 (independent control) | Quoted to specification |
| Roto Lube Filling Machine | See model specification | ≈5–5000 ml | Customisable | Quoted to specification |
| Compact Four Head Peristaltic Filling Machine | ≈30–50 bottles/min | 10–500 ml (110 V) / 10–1000 ml (220 V) | 4 (customisable) | Quoted to specification |
| Vacuum Filling Machine | See model specification | Product dependent | Model dependent | Quoted to specification |
| Semi Automatic Volumetric Filling Machine | ≈10–50 bottles/min | Product dependent | Model dependent | Quoted to specification |
| Semi Automatic Gear Pump Filling Machine | See model specification | ≈50 g – 50 kg | Not specified | Quoted to specification |
Send us your product and pack details and we will help narrow the range.
Speak with an engineer
Tell us what you are packaging and the output you need. We will use the page reference to route your enquiry to the right machinery specialist.
Send a representative liquid and explain its condition at the point of filling, including any variation across the batch. State the smallest and largest quantity required and show the container opening. A comparison is more useful when each proposed filler is assessed against the same product, pack and acceptance method.
Include the interval after dosing, when the bottle moves towards closing or labelling. Record drips, foam or product on the neck as separate observations from the measured fill. Ask the proposal to explain the product-feed and shut-off arrangements included for the intended configuration.
No. Product behaviour, container access, accepted fill result, cleaning and the complete operating method also affect the shortlist.
