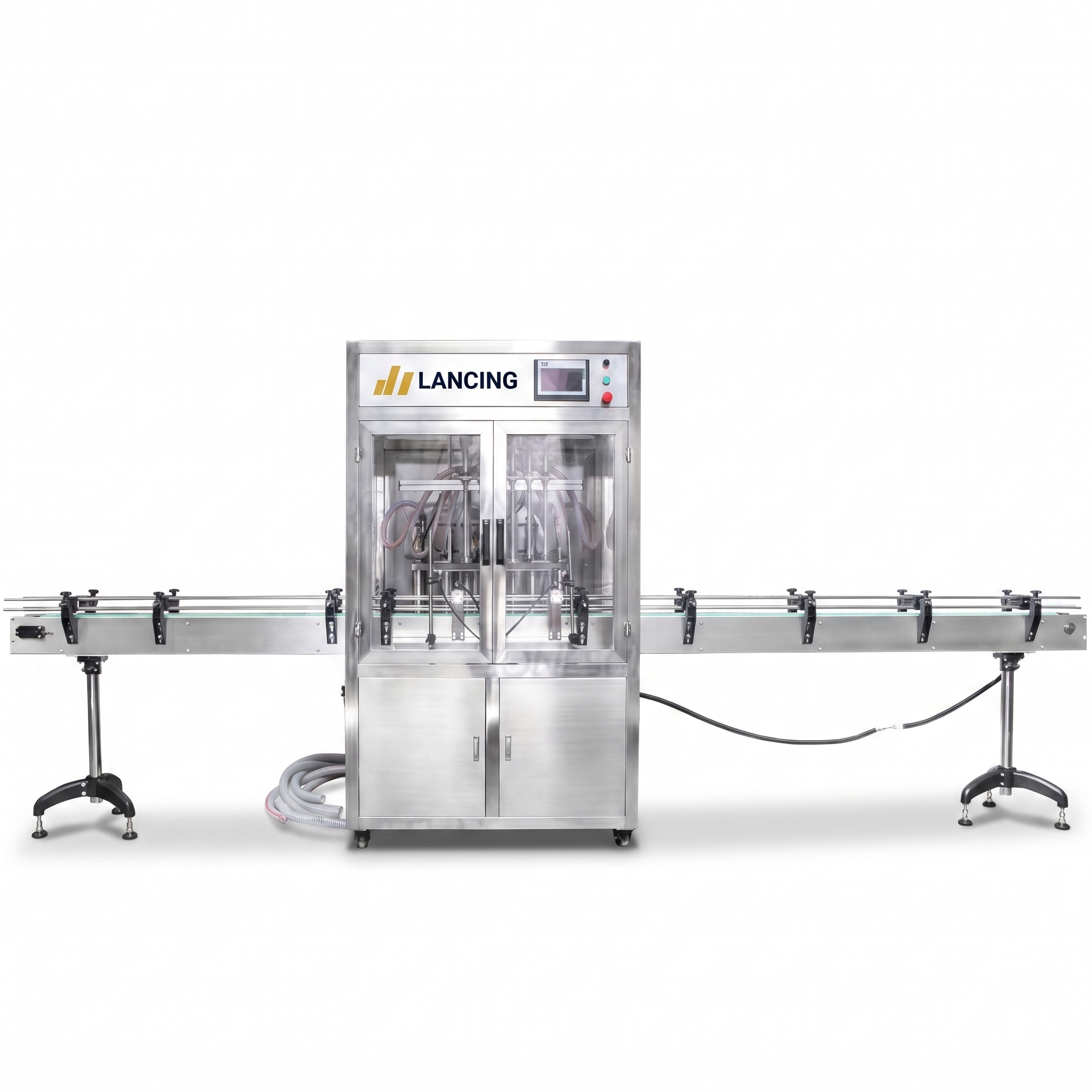

LANCING Piston Pump Automatic Beverage Shampoo Bottle Filling Machine

Custom-built packaging machinery

LANCING Piston Pump Automatic Beverage Shampoo Bottle Filling Machine

Model LU-YTDC6 · New · Available to order

£32,796.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

This automatic piston liquid filling machine is driven by air cylinder, it is suitable for low viscosity liquid like water, juice, grease, olive oil etc. Different filling range can be chosen according to production need. Multiple filling nozzles can be customised as well. It is widely used in food, daily chemical, and beverage industries.

Simple operation panel,it can be customised in different kinds of language.The visual working data makes it easier to test and adjust the machine,helps to save time. We use imported operation panel which improves the product quality.

Equipped with pneumatic diving nozzle,it has larger power to fill liquid.The diving nozzle can prevent the liquid from splashing as little as possible,improve filling accuracy.It is also good for filling foamy liquid.

To realize automated production,this machine is equipped with high quality electric eye,which can…

Technical details

BrandLancing
Model / MPNLU-YTDC6
ModelLU-YTDC6
Voltage110/220V 50-60HZ 800W
Filling Range100-1000 ml
Working Speed(Based On Water)30-40 bottles/min
Filling Accuracy≤±1%
Filling Nozzle Sizecustomised
Air Pressure0.5-0.7 MPa
Conveyor Length2000 mm(standard)/4530 mm(custom version)
Conveyor MaterialPlastic (Standard)/Stainless steel (custom version)
Size Of Air Compressor ConnectorOD 10 mm
Machine SizeAbout 1120*990*940 mm
Package WeightAbout 486 kg
Package SizeAbout 1600*1210*2160 mm

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
