LANCING Automatic Dual Head Shampoo Pump Dispenser Cap Bottle Capping Machine

Custom-built packaging machinery

LANCING Automatic Dual Head Shampoo Pump Dispenser Cap Bottle Capping Machine

Model LU-XG448S · New · Available to order

£49,097.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

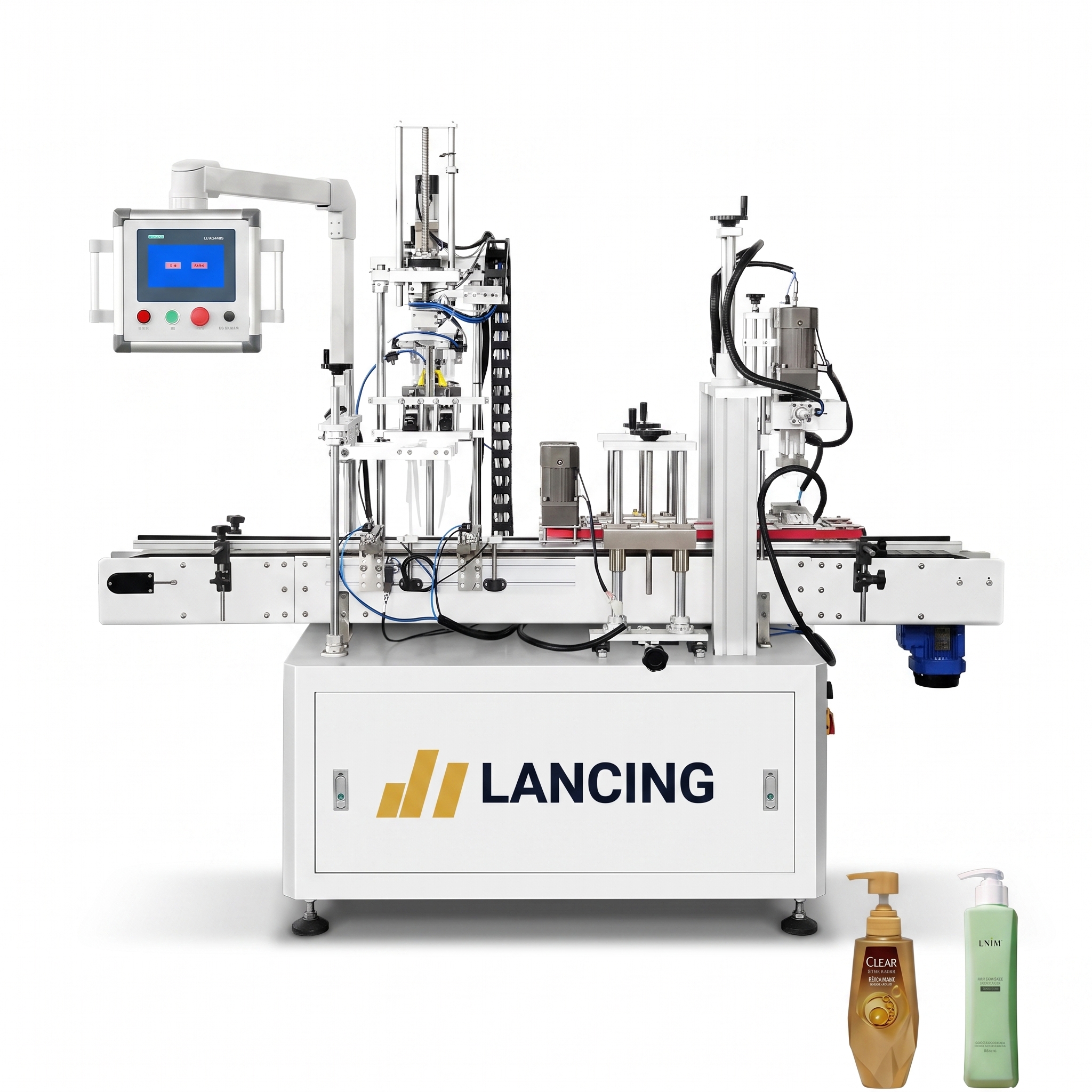

This automatic bottle capping machine is designed for pump caps with long rigid tubes, widely used in shampoo, shower gel, and lotion bottles. Equipped with a vibratory bowl, dual-head cap pick-and-place mechanism, it ensures accurate positioning and stable capping. Bottles are conveyed smoothly to complete the capping process efficiently.

Control Panel Swing-arm touch screen control panel makes parameter setting more intuitive, it realizes real-time machine monitoring.

Dual-head Cap Pick-and-Place Mechanism This mechanism features a dual-station rotary design that enables simultaneous cap picking and placing.

Cap Guide Housing Guide housing is designed for positioning dispense pump caps, ensures the capping work can be processed smoothly.

Capping Structure With guiding conveyor to clamp bottles and finished capping work, working height and width are adjustable as bottle diameter…

Technical details

BrandLancing
Model / MPNLU-XG448S
ModelLU-XG448S
Working VoltageAC 220V / UK-compatible power supply (voltage to be confirmed), 50–60Hz
Power2.2 kW
Bottle Cap Diameter20-35 mm
Bottle Height75-250 mm
Bottle DiameterØ40–100 mm
Working Speed30-40 bottles/min (Depending on bottles and caps)
Conveyor Length2200 mm
Working Pressure0.4–0.6 MPa
Machine SizeAbout 2200*1935*1575 mm (L*W*H)

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
