LANCING LU-VTXG1 Automatic Servo System Antifreezing Solution Engine Oil F-style

Custom-built packaging machinery

LANCING LU-VTXG1 Automatic Servo System Antifreezing Solution Engine Oil F-style

Model LU-VTXG1 · New · Available to order

£42,997.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

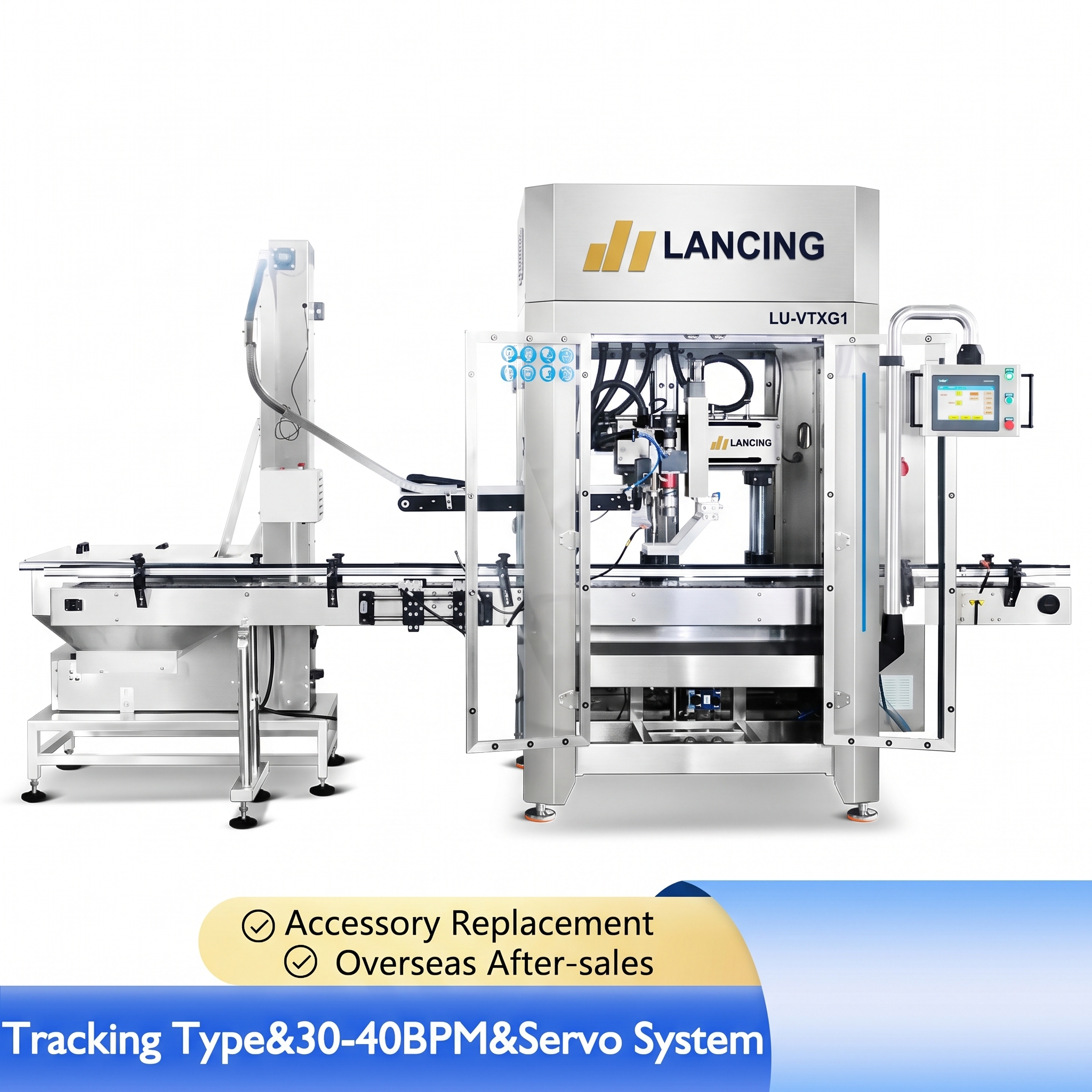

This tracking capping machine features a cap elevator and a UV lamp-equipped hopper for automatic cap replenishment. Its gripper mechanism precisely picks and tightens caps, ensuring high capping accuracy. Servo motor controls the process for optimal efficiency. It seamlessly integrates with filling and labelling machines for full automation.

Control Panel Using branding components, parameter setting more intuitively. Swing arm design offers flexibility.

Cap Elevator With UV sterilization function, cap elevator can supply caps in time to ensure smooth capping work.

Cap Passing Structure Using pneumatic claw to pass caps, it reduces error of placing caps.

Capping Structure Servo motor control capping work, tracking type capping heads improves working efficiency.

Electric Eye It can detect passing by bottles to realize automated production

Chain Conveyor Length & width are…

Technical details

BrandLancing
Model / MPNLU-VTXG1
Machine modelLU-VTXG1
Machine voltage110/220/380V 50-60HZ 2.5KW
Suitable cap diameter20-80 mm
Suitable bottle sizecustomised
Working capacity30-40 BPM
Machine sizeAbout 4200*1280*2350 mm
Machine weightAbout 450 kg
Package sizeAbout 2490*1220*2230 mm (Capping Machine) About 2350*860*1390 mm(Cap Elevator)
Package weightAbout 754 kg(Capping Machine) About 240 kg(Cap Elevator)

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
