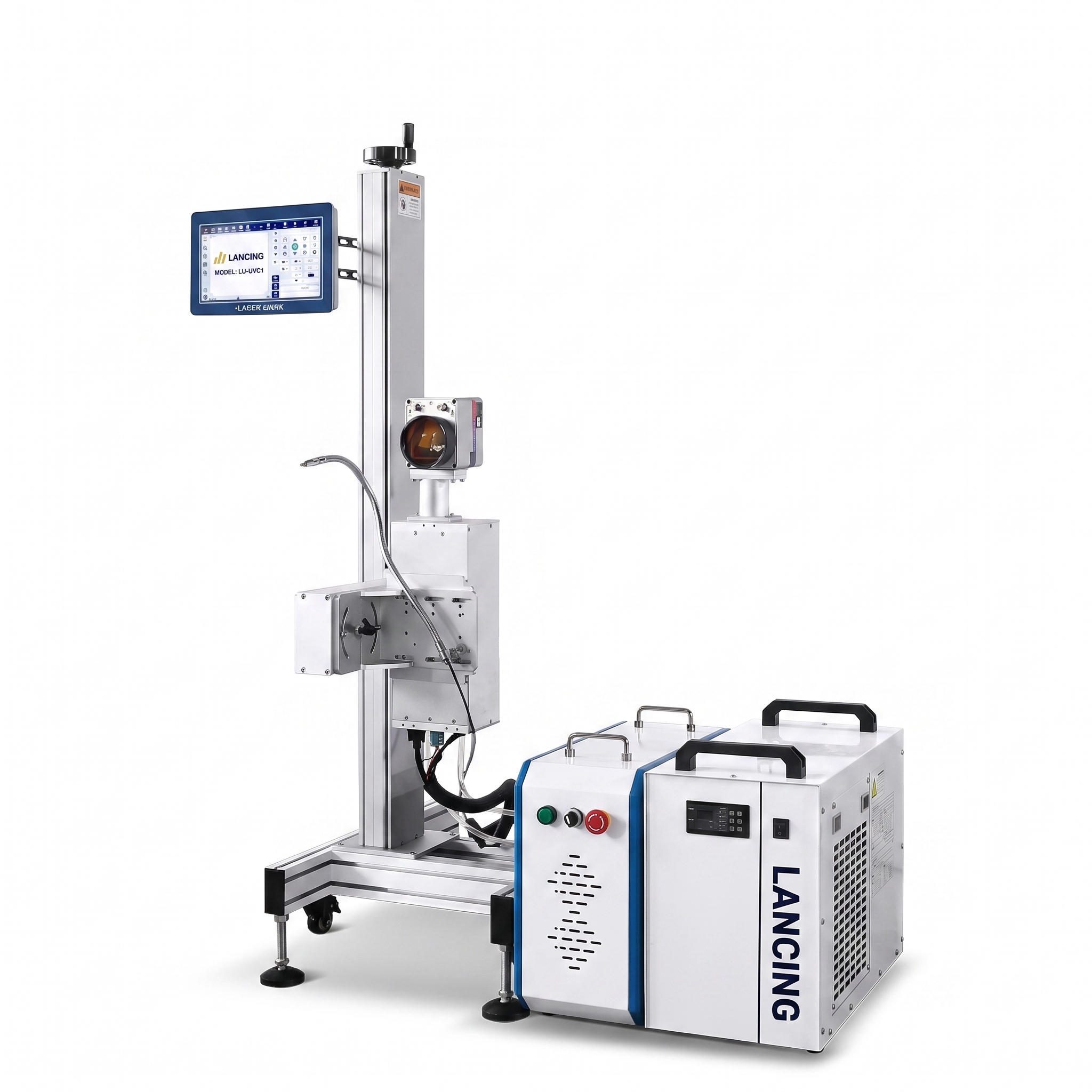

LANCING LU-UVC1 Date Logo Laser Marker Plastic Metal Glass Cold Marking UV Laser

Custom-built packaging machinery

LANCING LU-UVC1 Date Logo Laser Marker Plastic Metal Glass Cold Marking UV Laser

Model LU-UVC1 · New · Available to order

£15,996.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

A UV laser marking machine is a device that uses ultraviolet (UV) laser beams to mark or engrave various materials. they has high precision, and they are widely used in surface marking of glass, metal, plastic, wood, leather, acrylic, nano, cloth, ceramic, purple sand, and coated film (Actual testing is required due to different ingredients)

Touch Screen Control Panel Adjust parameter conveniently, can laser multi kinds of language.

High Quality Lens Focus the UV laser beam to a very small spot size to improve laser accuracy.

Precise Scale Marking More convenient to adjust machine and position the laser objects.

Electric Eye Can integrate with conveyor belt and detect passing by laser object to work.

Industrial Chiller Maintain a consistent and optimal temperature for the laser, preventing overheating.

Technical details

BrandLancing
Model / MPNLU-UVC1
Parameter: — Machine ModelLU-UVC1
Parameter: — Actual Output Power≥5.5 KW
Parameter: — Machine Power800 w
Parameter: — Laser Wavelength355 nm
Parameter: — Control System10.2-inch touch screen (Linux system)
Parameter: — Production Speed0-130 m/min (depending on the material)
Parameter: — Minimum Line Width0.0012 mm
Parameter: — Marking Range110*110 mm (optional)
Parameter: — Marking Speed≥12000 mm/s
Parameter: — Cooling MethodWater cooling
Parameter: — Multi-LanguageEnglish, French, Spanish, German, Chinese, Russian, Korean, Arabic, etc( can be added)
Parameter: — Suitable MaterialGlass, metal, plastic, wood, leather, acrylic, nano, cloth, ceramic, purple sand, and coated film (Actual testing is required due to different ingredients)
Parameter: — Package SizeAbout 630*430*210 mm(Lens) About 680*410*560 mm(Industrial Chiller) About 670*410*560 mm(Power Supply Host)
Parameter: — Package WeightAbout 13 kg(Lens) About 24 kg(Industrial Chiller) About 13 kg(Power Supply Host)

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
