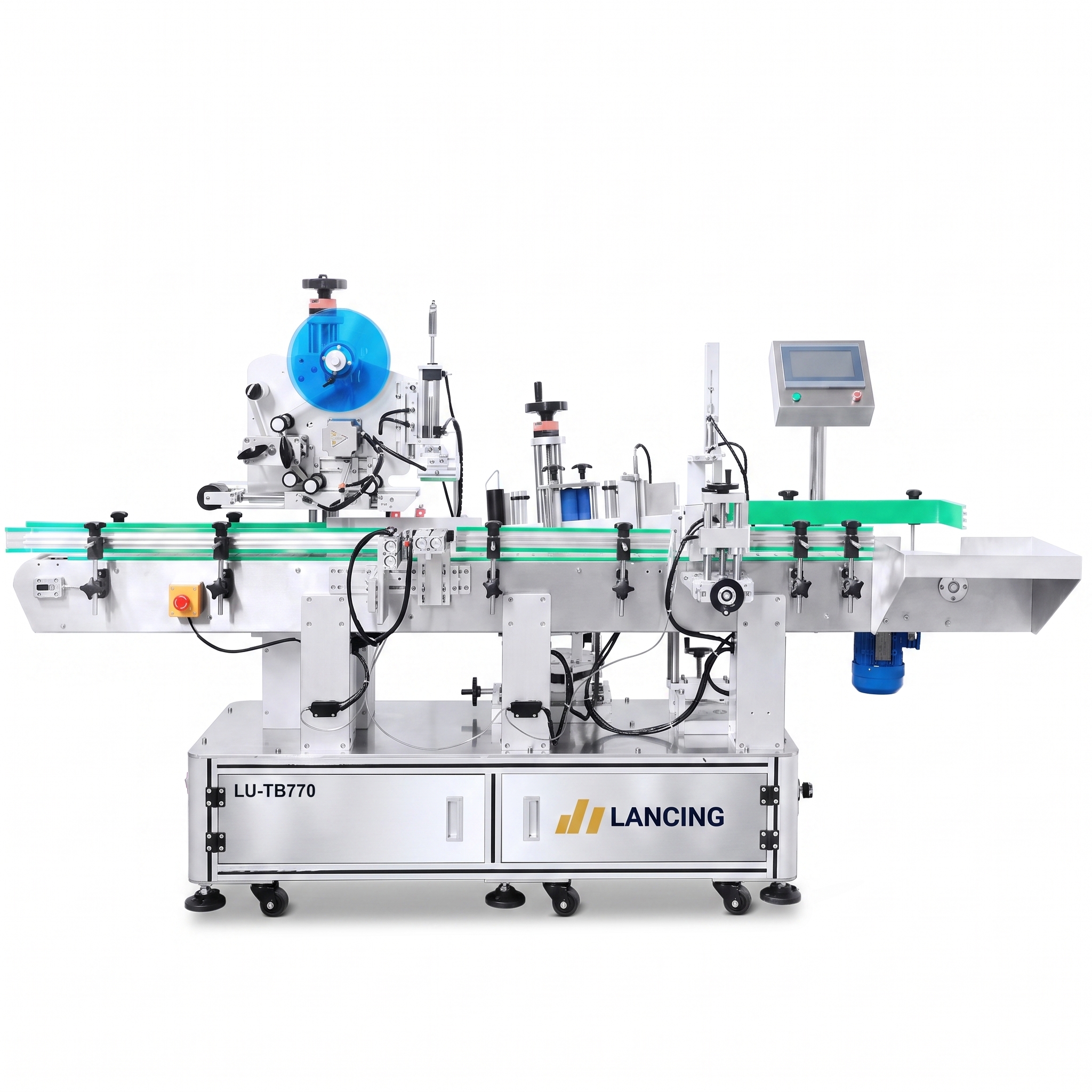

LANCING LU-TB770 Automatic Round Fruit Jam Bucket Tapered Tub labelling Machine

Custom-built packaging machinery

LANCING LU-TB770 Automatic Round Fruit Jam Bucket Tapered Tub labelling Machine

Model LU-TB770 · New · Available to order

£31,396.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

This labelling machine is customised for the tapered bottles or buckets, it can stick labels onto bottle caps and bottle body.Custom design ensures labelling accuracy. It is good for packaging buckets or tapered bottles in food industries.

Equipped with PLC touch screen control panel, operator can set working data like labelling speed, label outputting length more convenient and intuitively.Operating language can be customised into different kinds of language according to production needs.

Technical details

BrandLancing
Model / MPNLU-TB770
ModelLU-TB770
Power SupplyAC110V/220V 50Hz/60Hz 5000 W
labelling Capacity(bottles/min)25-30 bottles/min(depends on bottle size)
labelling Accuracy(mm)±1.0 mm
Suitable Bottle DiameterΦ25-100 mm
Label Size(mm)(L)20mm-285 mm* (H)20-150 mm
Roll inside Diameter(mm)Φ76 mm
Roll outside Diameter(mm)Φ280 mm
Conveyor Size100*2380 mm(W)
Machine SizeAbout 2550*1080*1590 mm
Net WeightAbout 378 kg
Package SizeAbout 2550*1140*1685 mm
Gross Weight523 kg

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
