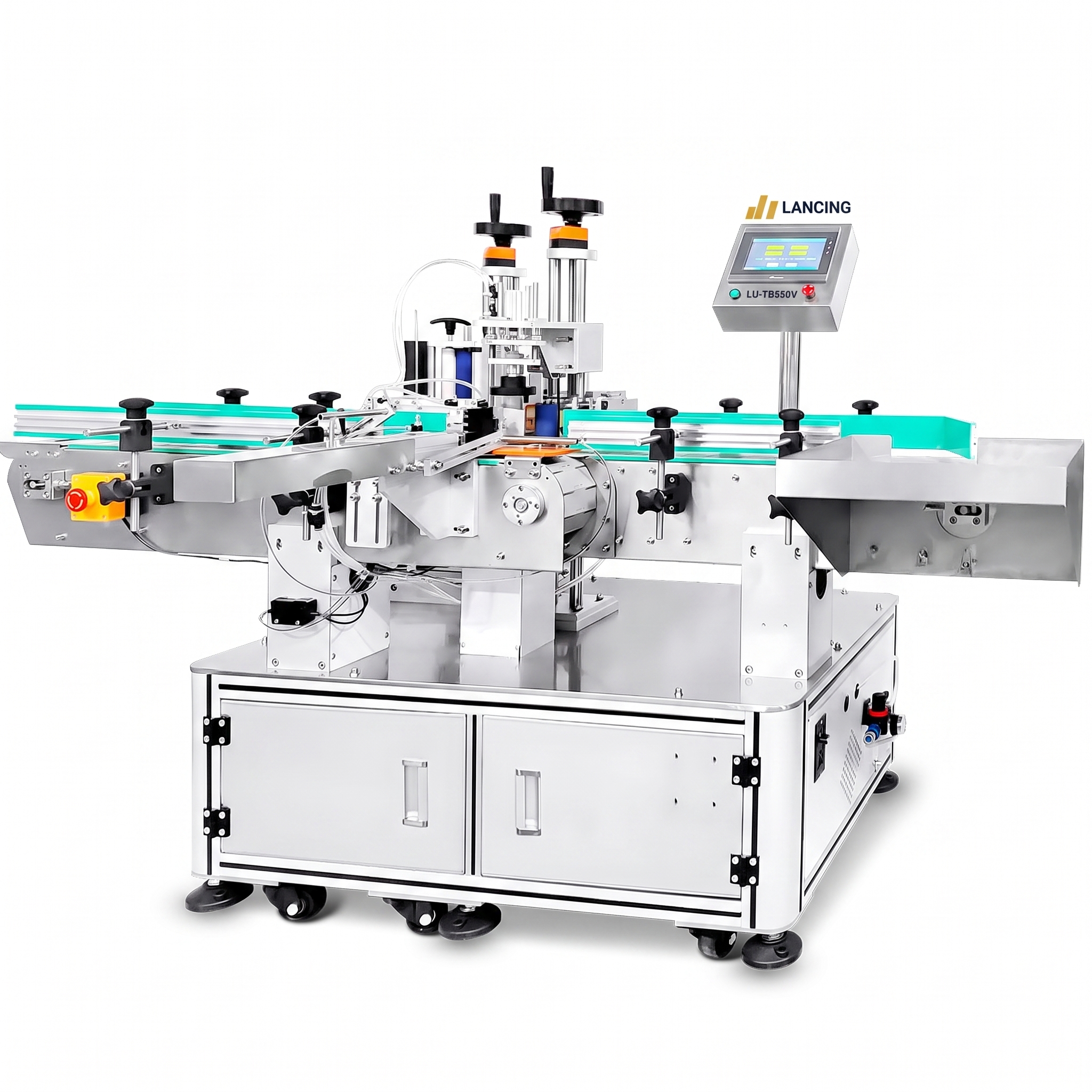

LANCING Automatic Hexagonal Bottle Self-adhesive Full Wrap-around Labeller

Custom-built packaging machinery

LANCING Automatic Hexagonal Bottle Self-adhesive Full Wrap-around Labeller

Model LU-TB550V · New · Available to order

£22,996.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

This automatic bottle labelling machine is designed for wrap-around labelling, as well as single or double-sided labelling on hexagonal bottles. It can be seamlessly integrated with filling and capping machines, automatically detecting bottles and applying labels with precision. Widely used in the food industry, it is ideal for packaging products such as fruit jam and hot sauce.

The touch screen control panel is more convenient to adjust machine parameter like labelling speed, label outputting length. We can customize the control panel in different kinds of languages, if you need this please contact us.

Mainly designed for wrapping around labelling on hexagonal bottles. The pressing structure will fix bottles and bottom rotating structure will rotate bottles and finish labelling work. It is also suitable for the single side and double sides labelling.

Electric eye can detect…

Technical details

BrandLancing
Model / MPNLU-TB550V
Machine modelLU-TB550V
Voltage220V 50-60HZ 570W
Suitable bottle sizeφ50-110 mm*25-130 mm(H) (Can be customised)
labelling speed25-45 bottles/min
labelling accuracy±1 mm
Suitable label size20 mm-130 mm(W)*20mm-290mm(H)
Label roll ODAbout φ280 mm
Label roll IDAbout φ76 mm
Air pressure0.4-0.6 MPa
Machine sizeAbout 2800*1200*1400 mm
Machine weightAbout 200 kg

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
