LANCING Automatic Sticker Fire Extinguisher Round Cylinder Labelling Machine

Custom-built packaging machinery

LANCING Automatic Sticker Fire Extinguisher Round Cylinder Labelling Machine

Model LU-TB400 · New · Available to order

£24,796.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

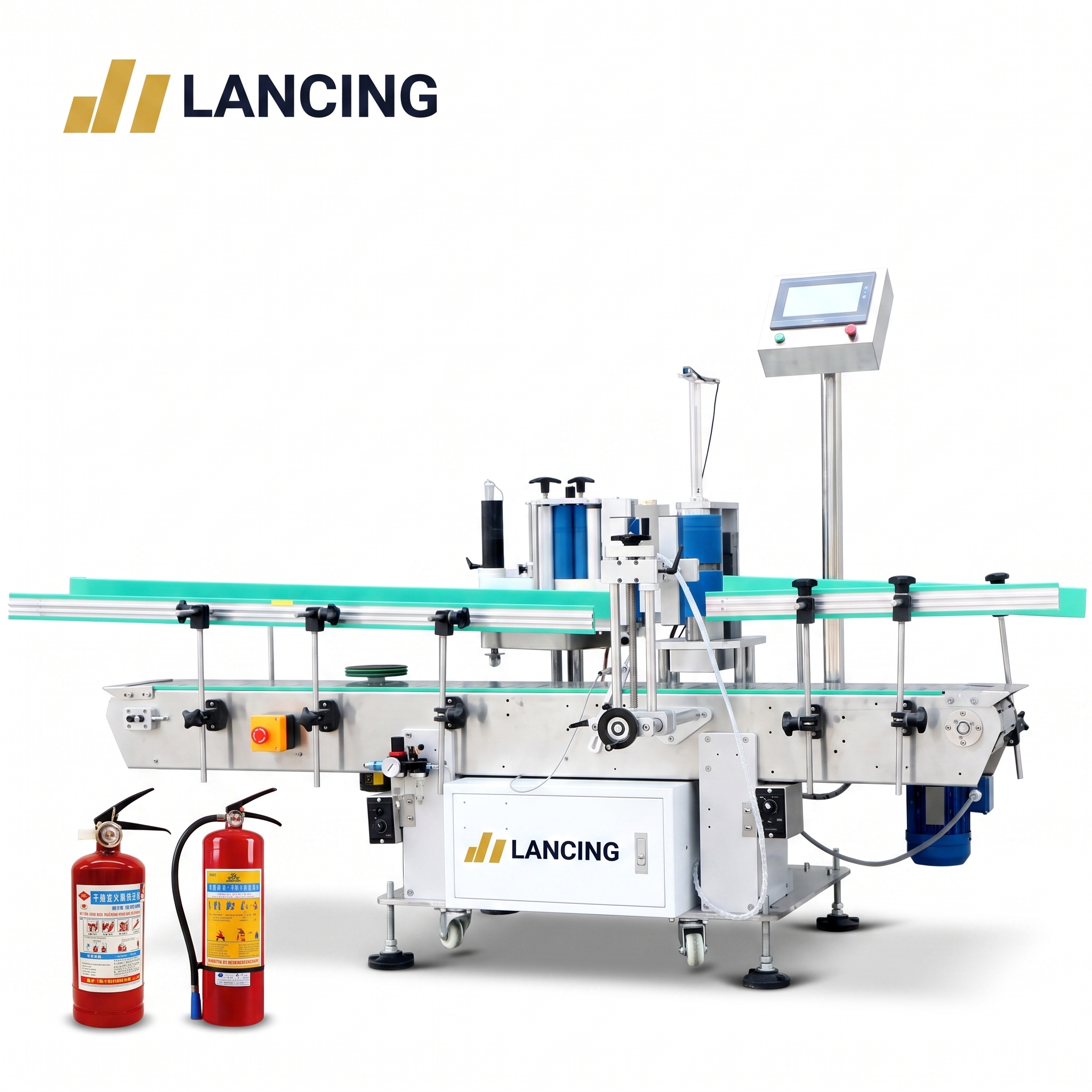

This automatic labelling is used for labelling self-adhesive stickers on large diameter cylinder like fire extinguisher, bucket etc.It is suitable for single side and double sides labelling, and can work with automatic filling and capping machine to realize automated production.

Equipped with touch screen control panel, different kinds of language can be customised as operation need. The visual working data makes it more convenient to debug machine.

Equipped with electric eye, this can detect passing by bottles and control the machine to start to labelling work. It can reduce the production error and improves working efficiency.

Equipped with stainless steel conveyor, it has larger weight capacity when transporting objects. The width of conveyor belt can be customised according to production need.

Technical details

BrandLancing
Model / MPNLU-TB400
Machine ModelLU-TB400
Machine Voltage110/220V 50-60HZ
Suitable Product Diameter15-120 mm
Suitable Label Sizecustomised
labelling Speed25-40 pcs/min
labelling Accuracy±1 mm
Air Pressure0.4-0.6 MpA
Machine SizeAbout 2150*1100*1440 mm
Machine WeightAbout 222 kg
Package SizeAbout 2150*1450*1590 mm
Package WeightAbout 470 kg

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
