LANCING Automatic Double Heads Servo Food Sauce Cosmetics Jar Capping Machine

Custom-built packaging machinery

LANCING Automatic Double Heads Servo Food Sauce Cosmetics Jar Capping Machine

Model LU-SVXG01 · New · Available to order

£28,996.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

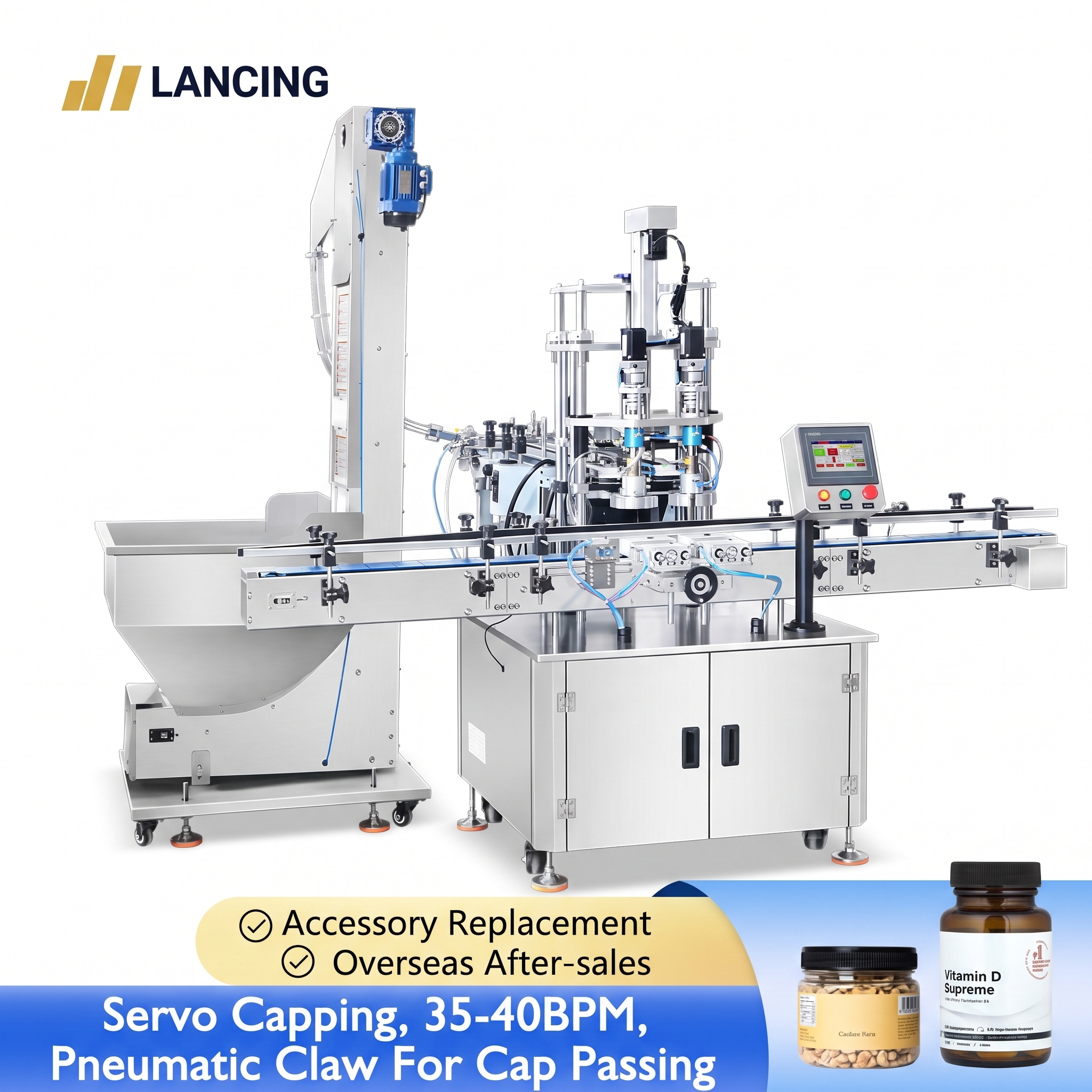

The LANCING jar capping machine is built for automatic capping of jars and bottles used in food, pharmaceutical, cosmetic, daily chemical and seasoning production. It features dual capping heads with servo motor control, allowing torque settings to be adjusted for different cap requirements. Pneumatic grippers ensure stable cap passing and help shorten changeover times. This machine can reach approximately 2100-2300 BPH and supports parameter data storage, so saved parameters can be recalled when switching between different specification. By changing specific tooling parts, it can accommodate different bottle diameters and cap sizes. The machine is constructed from SUS304 stainless steel and equipped with an automatic cap elevator for continuous cap feeding. It can be used as a standalone unit or integrated with filling, labelling and other packaging equipment like other LANCING…

Technical details

BrandLancing
Model / MPNLU-SVXG01
Machine ModelLU-SVXG01
Machine Voltage110/220 V, 50-60 HZ, 1.5 KW
Suitable Bottle Sizeφ=20-150 mm, H=20-220 mm
Suitable Cap SizeCustomizable
Working Capacity2100-2300 BPH
Conveyor Size2000*114 mm (L*W), Working Height=850 mm
Machine Casing MaterialSUS304
Air Consumption0.4-0.6 MPa
Machine SizeAbout 2280*2050*2250 mm
Machine WeightAbout 260 kg
Package SizeAbout 2290*1340*1420 mm (Cap Elevator)+1150*1050*1200 mm (Capping Machine)
Package WeightAbout 270 kg (Cap Elevator)+314 kg (Capping Machine)

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
