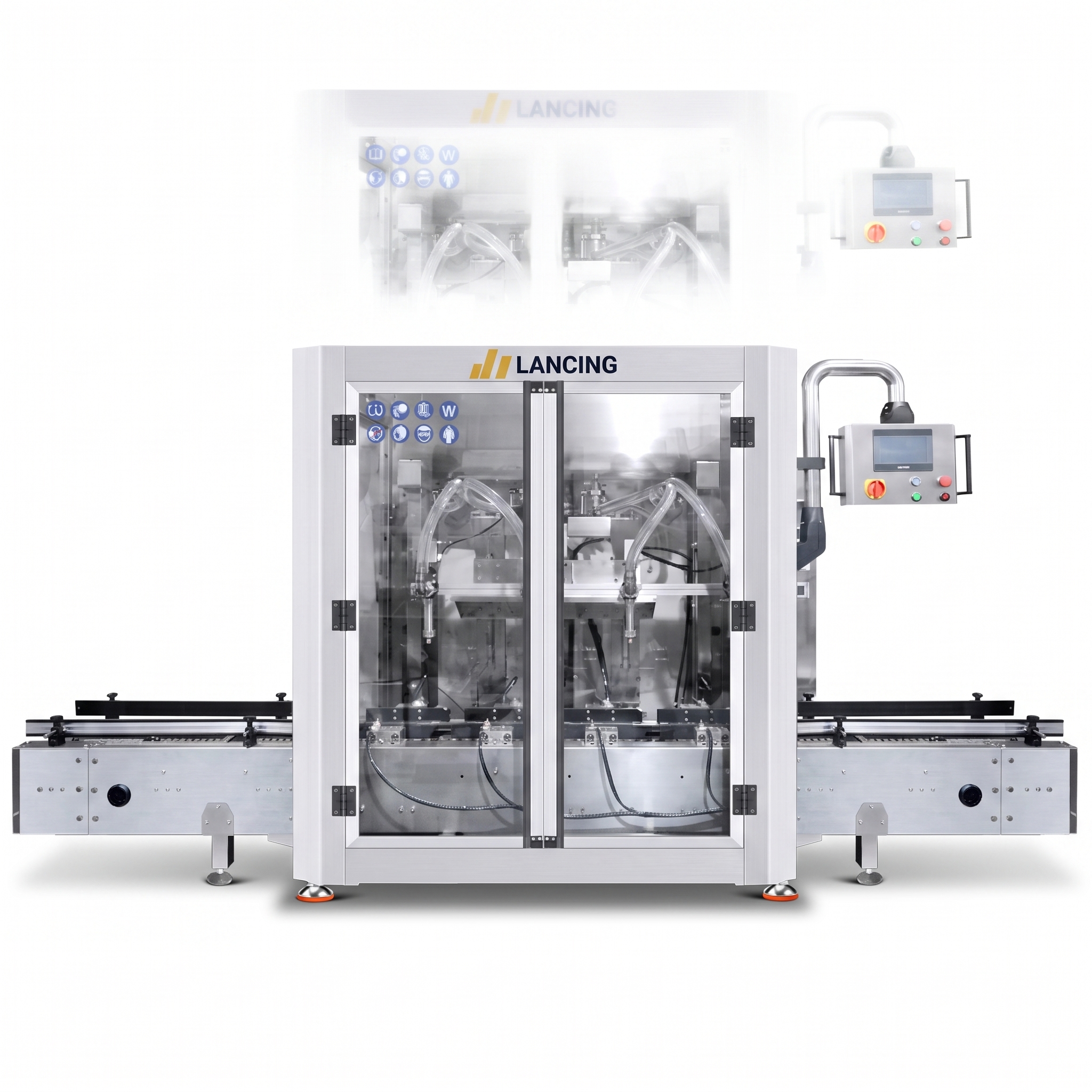

LANCING Automatic 4 Heads Mineral Water Cooking Edible Filling Machine

Custom-built packaging machinery

LANCING Automatic 4 Heads Mineral Water Cooking Edible Filling Machine

Model LU-GYW4 · New · Available to order

£32,997.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

This automatic paste liquid weighing filling machine can control filling volume by Electronic weighing, which is more convenient to adjust machine.It is the ideal choice for filling large volume products like cooking oil, engine oil, laundry detergent etc.

Equipped with pneumatic filling nozzles, these are more powerful when filling thicker liquid, or paste.The number of filling nozzle (2/4/6/8/10/12 nozzles) can be customised as production need to improve working efficiency.

Control filling volume by electronic weighing structure, this kind of filling method is suitable for large filling volume products like cooking oil, engie oil.

Equipped with bottle clamping structure, these can fix bottes during filling. The electric eye is used to detect passing by bottles and control machine to start filling work automatically.

Technical details

BrandLancing
Model / MPNLU-GYW4
Machine ModelLU-GYW4
Power Supply220/380V
Power2.8 kw
Production Capacity120-300 BPH (based on 10L)
Filling Range5-20L
Filling Head Number4 heads (can be customised)
Weighing Error≤0.35%
Machine Size3000×1000*1800 mm
WeightAbout 330 kg

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
