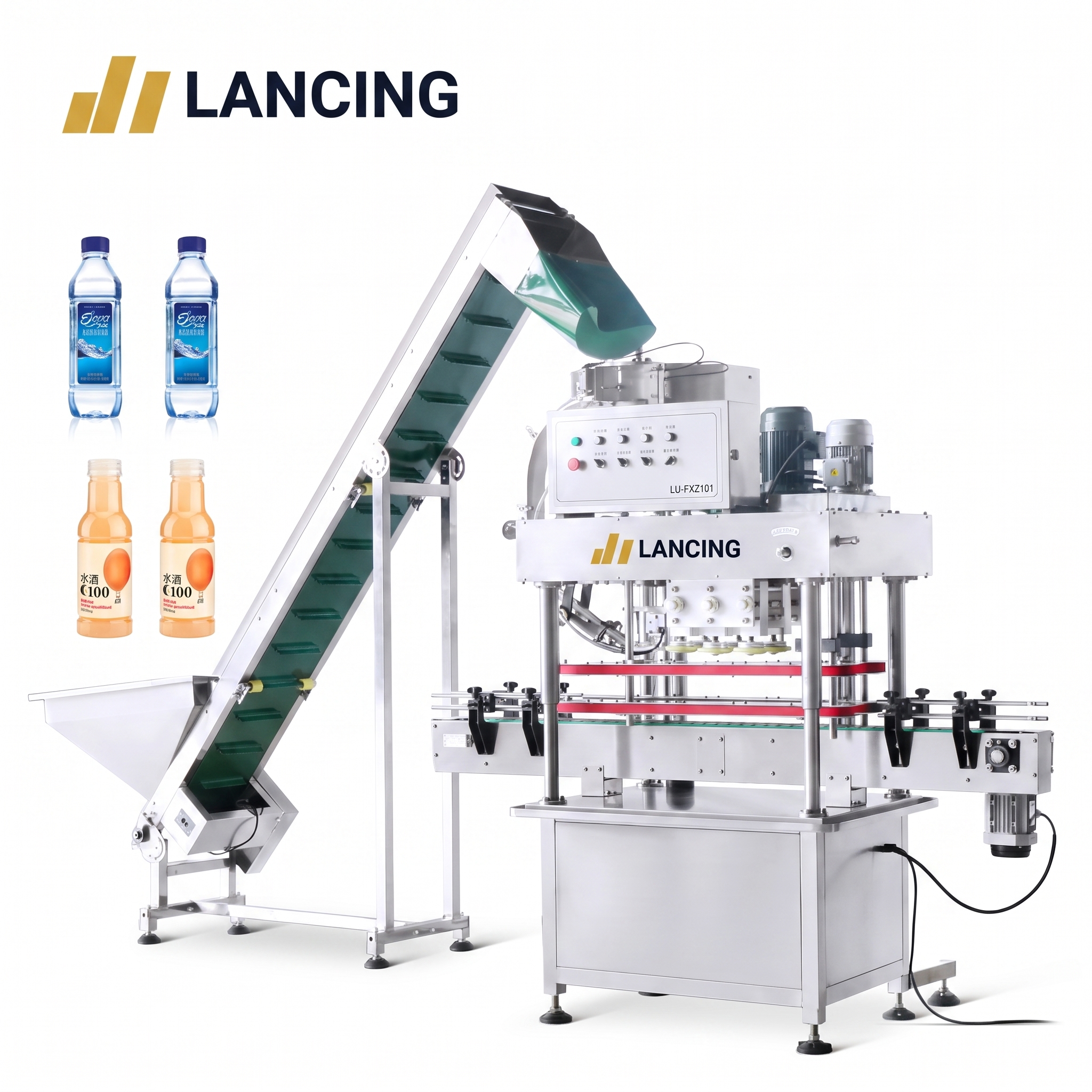

LANCING LU-FXZ101 Automatic High Speed PET Plastic Beverage Capping Machine

Custom-built packaging machinery

LANCING LU-FXZ101 Automatic High Speed PET Plastic Beverage Capping Machine

Model LU-FXZ101 · New · Available to order

£29,396.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

This bottle capping machine is equipped with cap sorting machine, which has lower noise and faster working speed when compared with the vibrating bowl sorting machine. The capping structure is consist of multiple sets of rubber capping wheels, this makes several bottles can be tightened at the same time. It is suitable for packaging screw-on caps in food, beverage, cosmetics and dailyt chemical industries.

Parameter

Unlike the vibrating bowl sorter, the cap sorting unit uses electricity to keep the bottom and the wall of the cap sorting unit l in rotation, arrange the caps in order and transport them to the guide rail. Equipped with electric eyes to identify and remove caps that are not properly aligned, this unit operates with less noise and works more efficiently

The capping structure is consist of serval sets of rubber capping wheels, these can tighten several bottles at the…

Technical details

BrandLancing
Model / MPNLU-FXZ101
Machine ModelLU-FXZ101
Voltage110/220V 50-60HZ 2KW
Working Speed≤8000 bottles/hour(based on product size)
Bottle DiameterAbout Φ35-96 mm
Bottle HeightAbout 80-230 mm
Bottle Caps DiameterAbout Φ12-50 mm
Bottle Caps HeightAbout 15-40 mm
Air Pressure0.5-0.7 MPa
Machine Size(L*W*H)2000*1000*2400 mm(Capper)+2420*500*2600mm(Cap feeding elevator)
Machine weightAbout 650 kg (Capper)

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
