LANCING Automatic Motor Oil Paste Servo Jerry Can Gear Pump production line

Custom-built packaging machinery

LANCING Automatic Motor Oil Paste Servo Jerry Can Gear Pump production line

Model LU-FAL180Z10 · New · Available to order

£169,797.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

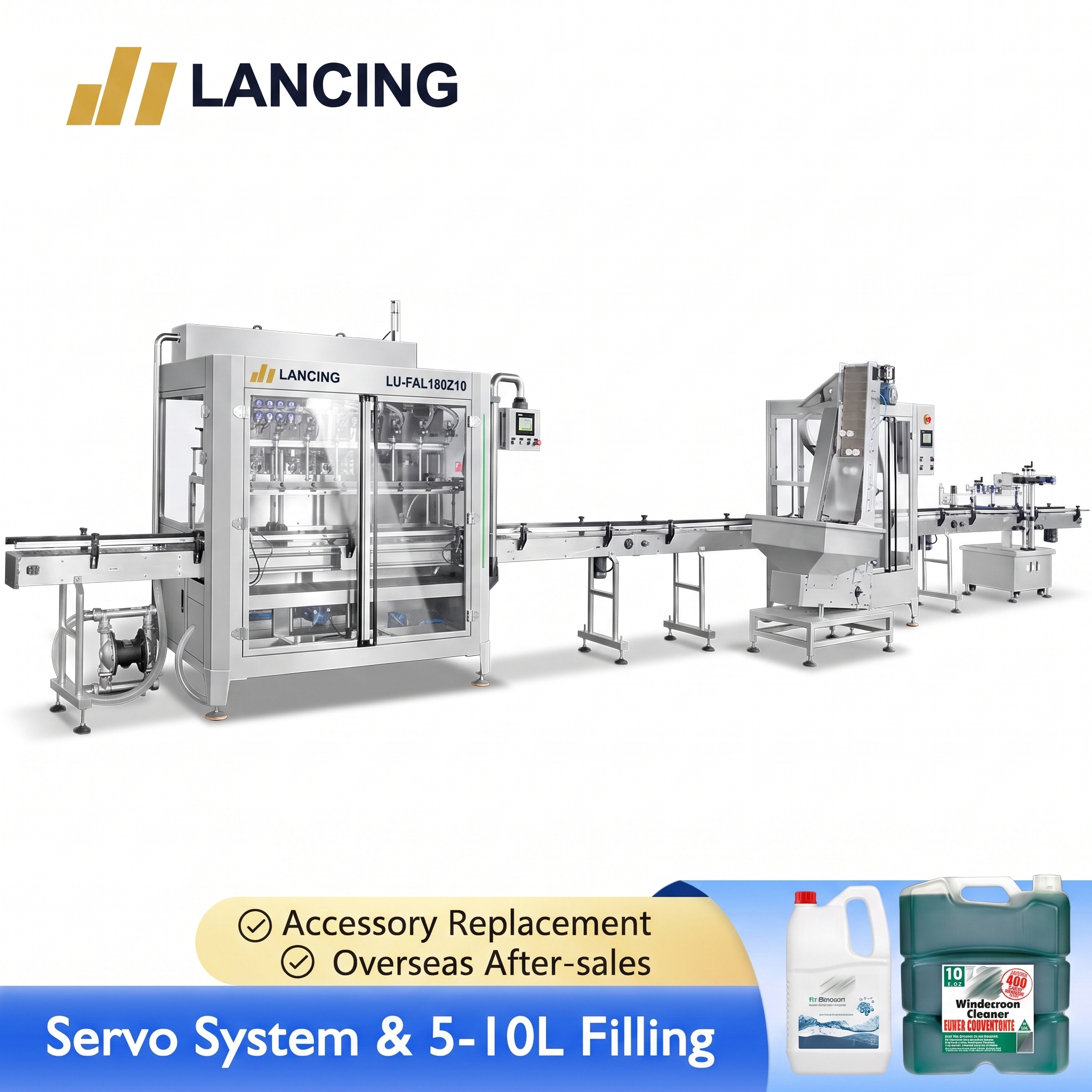

This packaging system is consist of servo gear pump filler, f-style bottle capper, single side labeler to realize automated small or medium scale production of engine oil.

PLC Control Panel Filling volume can be set easily, customizable interface makes machine debugging more conveniently.

Filling Nozzles Multi filling heads can be customised, anti-dripping structure ensures production quality

Servo Gear Pump Filling work is controlled by servo gear pump,it has higher filling accuracy.

Feeding Pump Can supply filling material in time once the liquid level sensor detects the material shortage.

UV Sterilization Helps to kill bacteria, viruses, and other microorganisms. The cap elevator can lifts caps and moves them to the capping area.

Capping Conveying & Capping Structure Processes of passing and tightening caps are controlled by servo motor, capping torsion can be controlled…

Technical details

BrandLancing
Model / MPNLU-FAL180Z10
Parameter Servo Gear Pump Filling Machinery — Machine modelLU-VTGP8D
Parameter Servo Gear Pump Filling Machinery — Machine voltage220/380V 3KW
Parameter Servo Gear Pump Filling Machinery — Filling range5-10L
Parameter Servo Gear Pump Filling Machinery — Working capacity8-16 BPM(based on filling volume)
Parameter Servo Gear Pump Filling Machinery — Filling pumpGear Pump
Parameter Servo Gear Pump Filling Machinery — Drive modeServo System
Parameter Servo Gear Pump Filling Machinery — Filling nozzle quantity8
Parameter Servo Gear Pump Filling Machinery — Air consumption4kgs*30L
Parameter Servo Gear Pump Filling Machinery — Machine sizeAbout 5800*1730*2550 mm
Bottle Capping Machine — Machine modelLU-XG441F
Bottle Capping Machine — Machine voltage110/220V 50-60HZ 2KW
Bottle Capping Machine — Suitable cap size30-120 mm(Can be customised)
Bottle Capping Machine — Suitable bottle heightcustomised
Bottle Capping Machine — Air pressure0.7 MPa

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
