LANCING LU-FAL180G3 Fully Automatic Cam System Peristaltic Pump Cosmetic Line

Custom-built packaging machinery

LANCING LU-FAL180G3 Fully Automatic Cam System Peristaltic Pump Cosmetic Line

Model LU-FAL180G3 · New · Available to order

£65,847.00

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.
Order this machine
  • Configured around your supplied samples
  • Payment by invoice and bank transfer
  • No change-of-mind returns once custom work begins

Machine overview

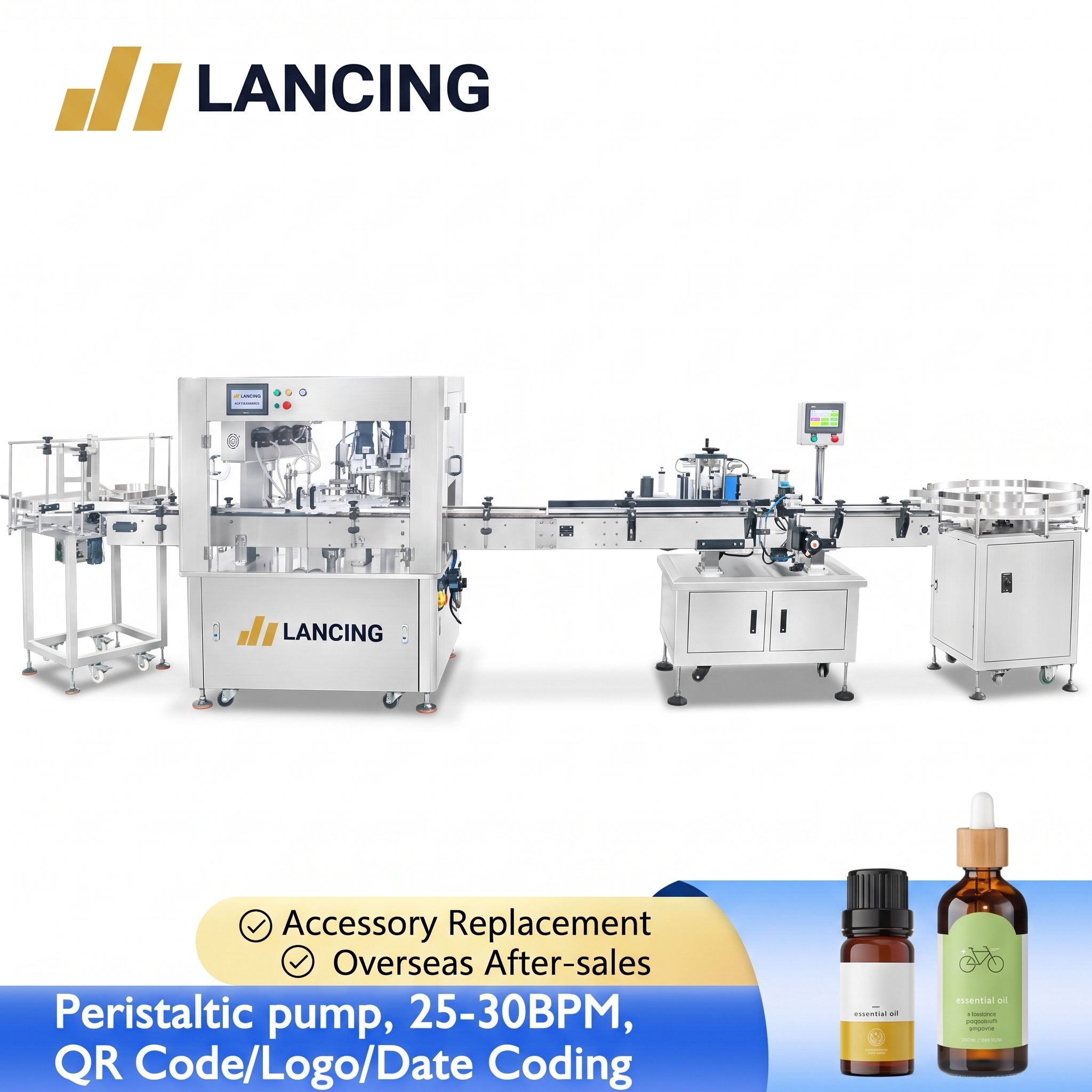

This filling system is designed for packaging small bottles such as cosmetic serums, essential oils, and massage oils, ideal for small-scale production. It includes a monoblock filling and capping machine, labelling machine with date coder, and a bottle sorting machine. The system operates with a cam system, achieving a speed of 25-30 BPM, and utilizes a peristaltic pump for accurate filling with a minimal error of ±0.1 ml. It supports both single and double-side labelling, and features inkjet coding for printing QR codes, logos, and dates on bottles. This compact and efficient system ensures precise and streamlined packaging for small bottle production.

Touch Screen Control Panel Parameter setting will be more convenient, multi kinds of language are customizable as production needs.

Peristaltic Pump Liquid only pass through filling hose, it has high filling accuracy and high…

Technical details

BrandLancing
Model / MPNLU-FAL180G3
Monoblock Filling Capping Machine Parameter — Machine modelLU-AFC45
Monoblock Filling Capping Machine Parameter — Machine voltage110/220V 50-60HZ 2.5KW
Monoblock Filling Capping Machine Parameter — Filling pumpPeristaltic Pump
Monoblock Filling Capping Machine Parameter — Filling range10-100 ml
Monoblock Filling Capping Machine Parameter — Filling error±0.1 ml
Monoblock Filling Capping Machine Parameter — Working capacity25-30 BPM
Monoblock Filling Capping Machine Parameter — Suitable bottle size20-50 mm*50-110 mm(φ*H)
Monoblock Filling Capping Machine Parameter — Suitable cap sizeΦ=21.5 mm (Customizable)
Monoblock Filling Capping Machine Parameter — Air pressure0.4-0.6 MPa
Monoblock Filling Capping Machine Parameter — Machine sizeAbout 2205*1620*1590 mm(L*W*H)
Monoblock Filling Capping Machine Parameter — Machine weightAbout 700 kg
labelling Machine Parameter — ModelLU-TB260R labelling Machine
labelling Machine Parameter — Power supplyAC 220 V 50/60 Hz 1 KW
labelling Machine Parameter — labelling capacity(bottles/min)25-50 bottles/min(depends on bottle size)

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.
Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
