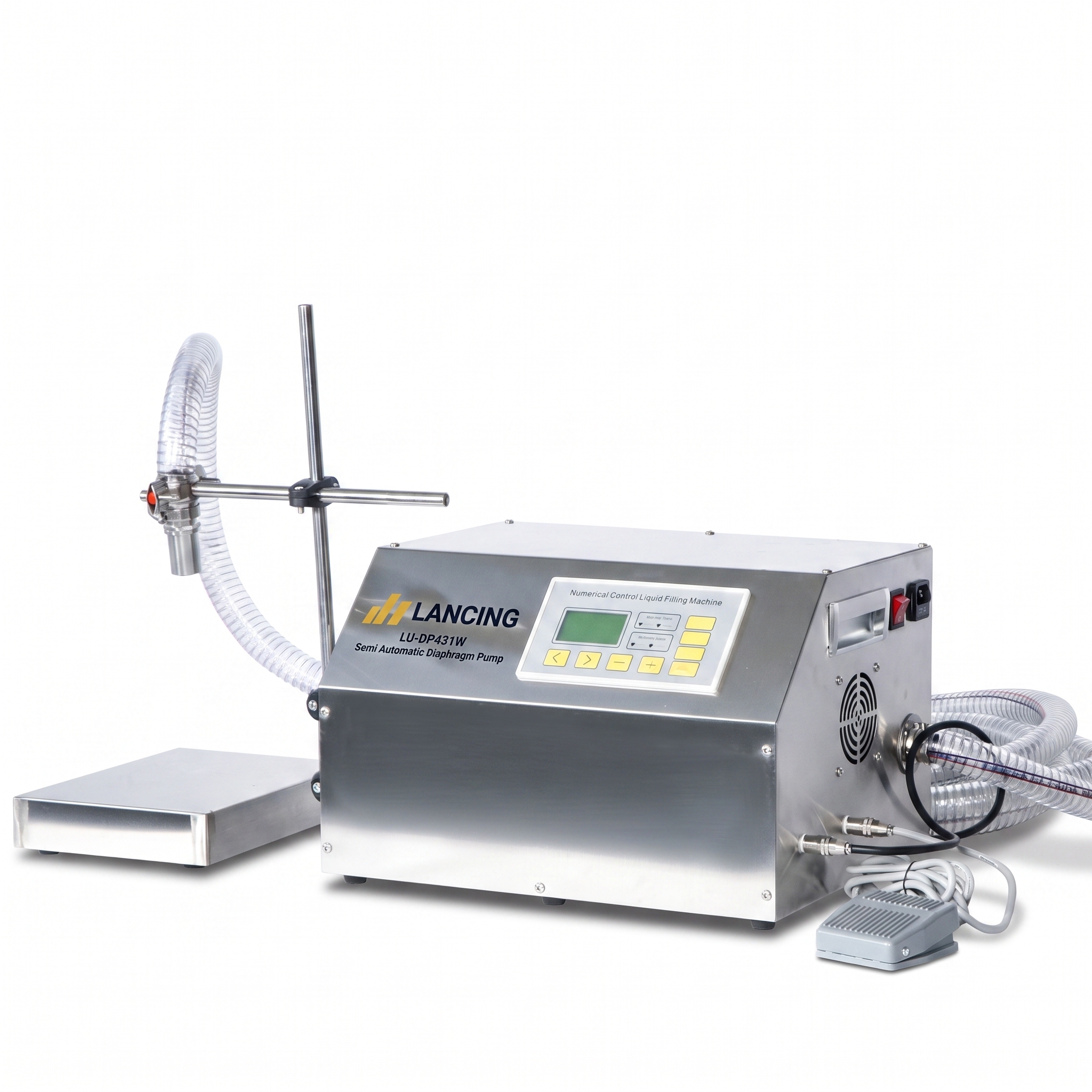

LANCING LU-DP431W Semi Automatic Diaphragm Pump Edible Oil Filling Machine

Name: LANCING LU-DP431W Semi Automatic Diaphragm Pump Edible Oil Filling Machine
Brand: Lancing
SKU: LU-DP431W
Price: 3018.96 GBP
Availability: InStock

Model LU-DP431W · New · Available to order

£3,018.96

Total price including VAT and standard UK delivery.

Build lead time: 10 weeksThe ten-week build period begins when Lancing receives and accepts your complete, usable product and packaging samples.

Order this machine Email sales@lancinguk.com

Configured around your supplied samples
Payment by invoice and bank transfer
No change-of-mind returns once custom work begins

Machine overview

This semi automatic filling machine is equipped with diaphragm pump which is suitable for filling low viscosity liquid like water, milk, juice, perfume etc. It is with weighing function, the electronic scale detects the weight in real time and send the signal back to the system. The pump will stop to work immediately after reaching the set amount. This kinds of machine can fill liquid more accurately. Parameter

Technical details

Brand	Lancing
Model / MPN	LU-DP431W
Machine Model	LU-DP431W
Machine Power	220V/UK-compatible power supply (voltage to be confirmed) 50-60Hz 550W
Machine Pump	Diaphragm Pump
Max Flow Rate	35L/min
Filling Range	150mL-35L
Weighing Range	150 g-10 kg
Repetitive Error	±10 g
Filling Nozzle Diameter	Φ25 mm&Φ19 mm
Hose Diameter	19 mm(ID)/25 mm(OD) & 25 mm(ID)/32 mm(OD)
Hose Length	3m(inlet) /1m(outlet)
Max Suction Distance	4m
Liquid Temperature	＜50℃
Memory Function without Electricity	Available
Machine Size	400300260 mm

Specifications are indicative and are finalised against the customer's samples and written order specification.

UK delivery includedStandard delivery is included in the displayed price. Installation and commissioning are separate unless stated in the written order specification.

Custom-built: no change-of-mind returnsBecause the machine is built or adapted to supplied samples, it cannot be returned for a change of mind once custom work begins. Statutory rights for faulty, unsafe or misdescribed goods are unaffected.
